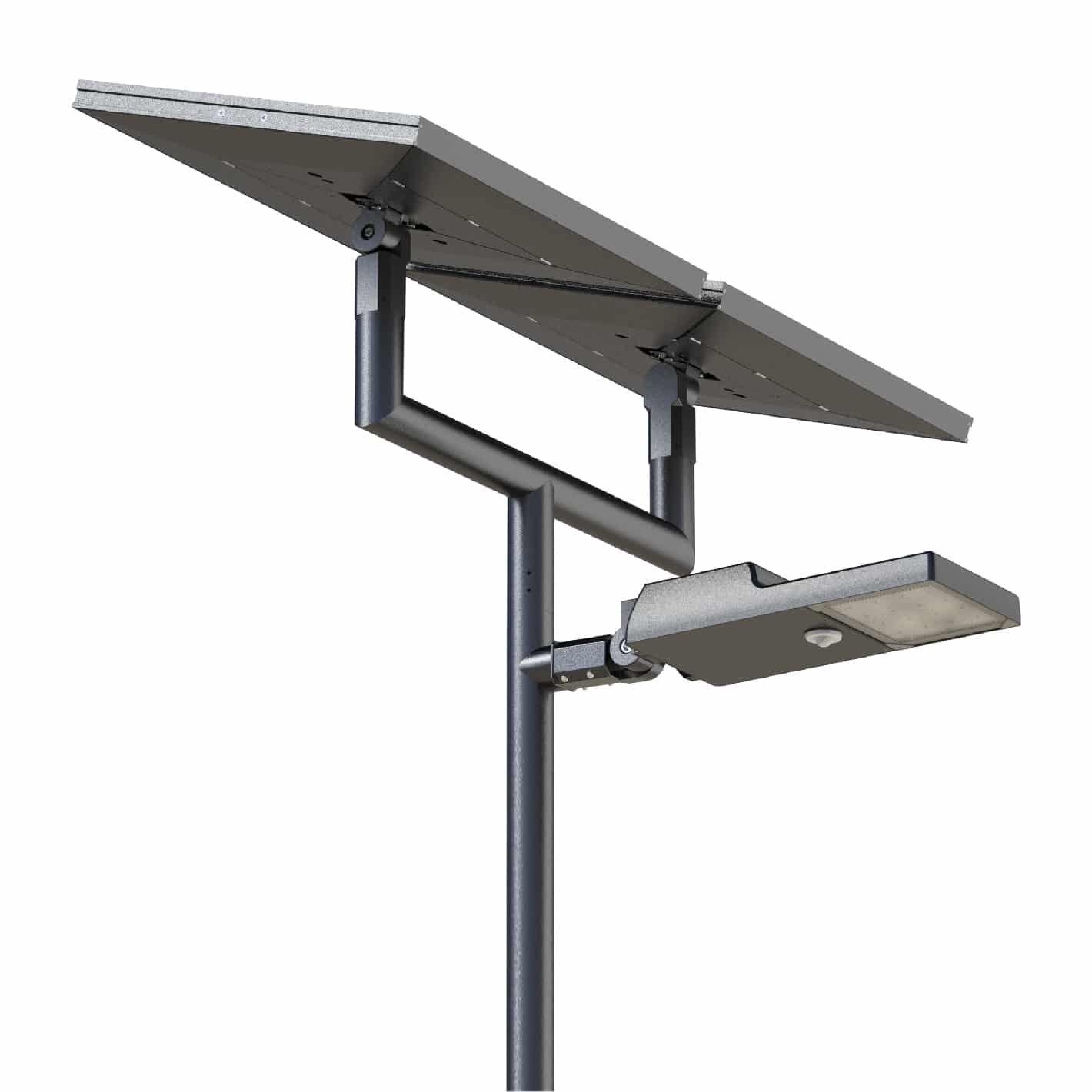

LED Solar Street Light-Titan-All in Two-S
LED Solar Street Light-Titan-All in Two-S is a new solar lighting system developed by Shinetoo, which integrates all components except for solar panels into the lamp.
This LED Solar Street Light-Galaxia-All in Two-S Height 4m-10m,LED Fixture Material Die Cast ADC12,IP&IK Protection IP65, IK10,Operating Temp:-25℃ ~ +45℃,Warranty 10 Years,Output 180-200LM/W,Design life 5-10 Years can easily illuminate the place you want to shine,This design allows for maximum capture of sunlight, and this product is designed with durability in mind to ensure it can withstand extremely harsh weather conditions and last for many years.It has the advantages of low cost, high efficiency, and long service life. And this two in one solar street lamp can better store solar energy and protect the environment.
excellent heat dissipation Effect, can be used in recreational sports field lighting (tennis court lighting, soccer field lighting, basketball court lighting, baseball field lighting, swimming pool lighting), parking lot lighting, outdoor sports field, outdoor street lighting, etc.
Product features
- Model number:ST-Titan-SS/ ST-Titan-SD
- Output:180-200LM/W
- Power Consumption:30-100W
- IP&IK Protection:IP65, IK10
- Design life:5-10 Years
- Operating temperature:-25℃ ~ +45℃
- Lifetime:More than 10 years
SHINETOO LED lighting manufacturer, with a professional R&D team and service team, supports OEM and ODM and other customised services.
Description
All in two solar street lights integrate batteries and controllers, suitable for installation from different angles to achieve maximum power generation efficiency. Modular design, easy installation, and sturdy and reliable support structure made of high-strength 6063 aluminum alloy. The surface is anodized and corrosion-resistant, lightweight, and can withstand 16 level typhoons. It is powered by an independent system and can be installed anywhere.

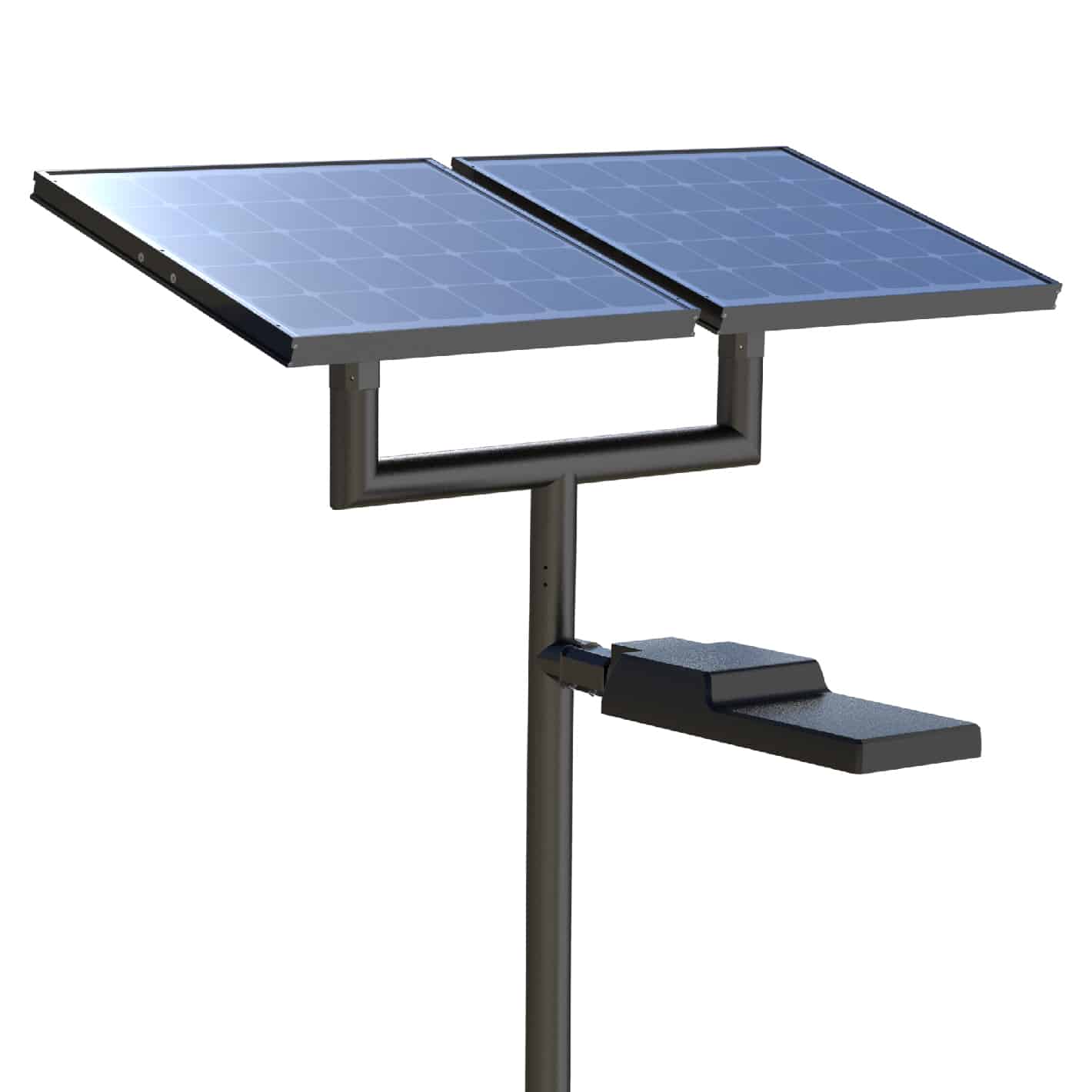

This ALl in two is a split system solar lamp with a multi-functional modular design capable of collecting and storing power for use by external devices. The power module features an efficient 120W solar panel with upgradeable battery storage options. It can also be dual installed, doubling the collection capacity of the solar panels to 240Wp, allowing for extended operation for more than 20 nights without further charging from the sun.
Product Feature
Attractive fashion design It can be extended with flexible module configuration for versatile performance Super light weight high tensile strength alloy Flexible solar panel mounting orientation to maximize solar output Tilt Angle -90° to +90° 360° rotation Independent LED: Position luminaire independent of solar panel positioning Easy to install and debug Dc port: Charge input/output to power other devices APS Power scaling processor expands operation in inclement weather Adaptive motion sensors reduce environmental/wildlife impact
Photovoltaic Panel
This Solar Street Light The default 210 architecture monocrystalline silicon photovoltaic panel can reach 120W
in the 810x710mm size range, and currently similar products can only achieve 90w in this
size range. In addition to the photovoltaic panels that come with the product, there are
external expansion photovoltaic interfaces
Battery
The default battery life is 130h(up to 10 nights), the default battery capacity is
11.8v/60ah/708wh, and the anode material of the battery cell is Lico02+6C-Co02
+Lic6 with passive battery balance technology.
Modular battery compartment,
later maintenance more convenient.
MPPT
Shinetoo independently developed MPPT
function, involving PC and mobile systems
are independently developed, the server
is placed in North America, more stable
and reliable.
Independently developed MPPT system,
with remote control of PC and mobile
terminal compatibility.
Other Parameters
Material : 6063-T5 aluminum alloy
Light pole sleeve fitting diameter : 64mm/ 2-3/8 “Tennon
Installation Angle : -90°- +90°
Operating Temperature: -20°C~+60°C
Protection class: IP65
Warranty: 5 years
datasheet
| MODEL NUMBER | ST-Titan-SS | ST-Titan-SD |
|---|---|---|
| Height | 4m-10m | 4m-10m |
| Dimension | 840x715x62mm | 1680x715x62mm |
| Operating temperature | -25℃ ~ +45℃ | -25℃ ~ +45℃ |
| Output | 200LM/W | 180-190LM/W |
| Color | 2700K~7000K | 2700K~7000K |
| LED Fixture Material | Die Cast ADC12 | Die Cast ADC12 |
| IP&IK Protection | >IP65, IK10 | >IP65, IK10 |
| Warranty | 10 Years | 10 Years |
| Design life | 5-10Years | 5-10Years |
| Power Consumption | 30W / 50W | 80W / 100W |
all LED solar street light
certification show
As the top manufacturer of LED flood lights in China, our LED flood lamps have complete certification and test reporting, such as ENEC, CE, CB, IECEE, SAA, ROHS, UL, IEC62471, LM80, LM79, and so on
Frequently Asked Questions(FAQ)
A tennis court in a club used for championship or professional matches; Using 8 lights, 60,000 lumens. Because LED lamps are much more efficient than metal halide lamps, far fewer wattages are needed to achieve this brightness.
Tennis organization lighting requirements for professional players
For televised games, the minimum lighting level should average about 285 feet.”
It only takes a few seconds to go from light to light.
Relatively speaking, LED lighting completely outperforms metal halide lamps in terms of longevity, power saving, no UV radiation, IP65 and IP66, IK08 and IK10.
Many tennis courts are now in the process of replacing LED lights from metal halide, the sooner you replace them the sooner you benefit, not only do you get brighter lights and they last up to 50,000 hours and are very energy efficient and reduce maintenance costs, LED lights are a very good choice now and in the future.
Recreational tennis court (size is 36*18m), 6 x 6m high poles, using 6 x 300W LED lights. 2 recreational tennis courts, using 12 x 9m high LED poles, using 8 x 300W LED lights per tennis court, for a total of 16 x 300W LED lights.
The general installation height should be no less than 40 feet and no lower than the other lights in the facility.
According to our years of experience in the design of LED lighting, tennis courts with LED lights, generally using 300-500W wattage, can replace metal halide lamps wattage is 800W-1500W, can save a lot of electricity.
