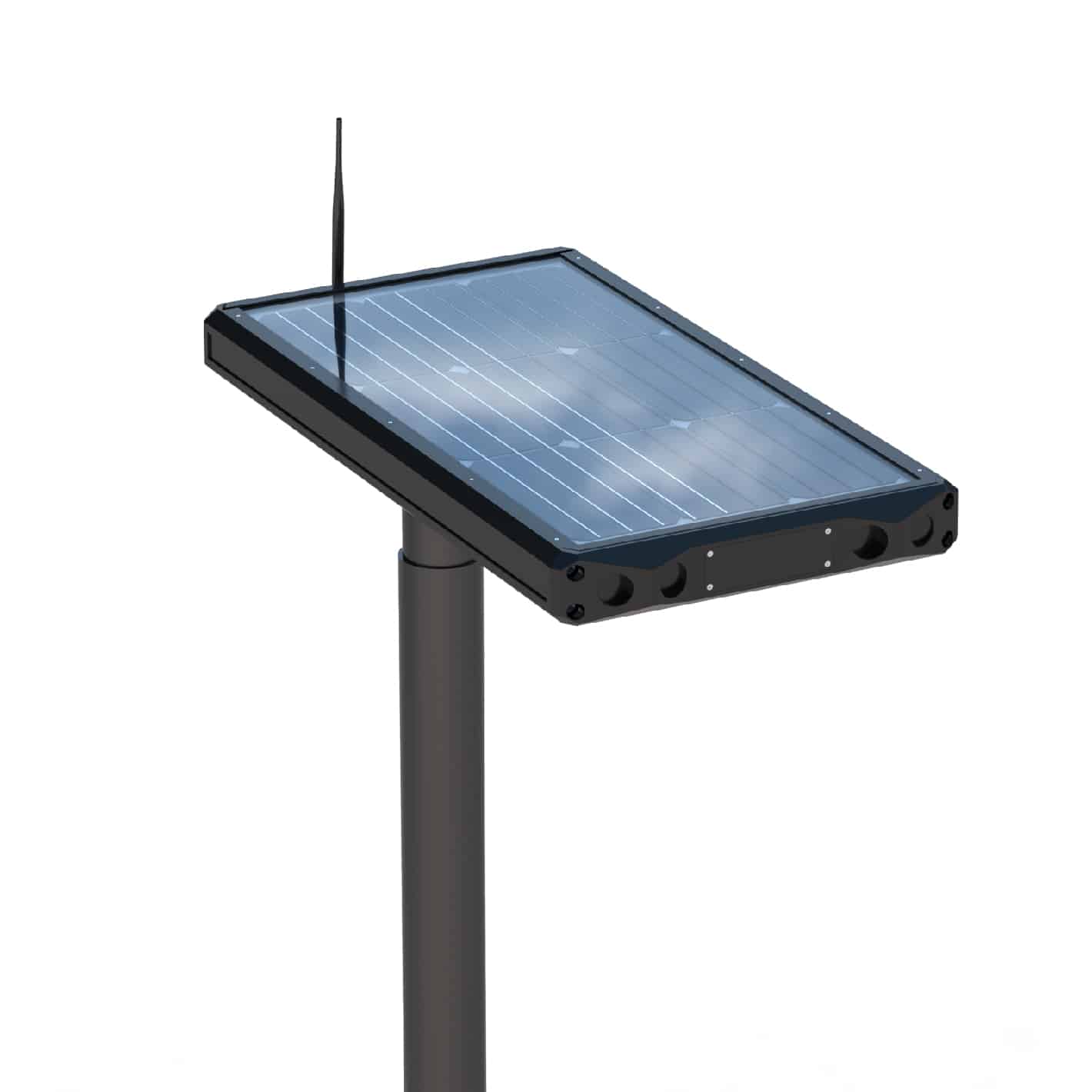

The All-in-one Solar light is the latest mid-sized solar lamp from Shinetoo Lighting.It features an adjustable Angle LED, dual PIR motion detection and advanced
nanoparticle battery with passive battery balancing technology and a fully programmable solar energy controller. It can be extended to be deployed as part of a remotely controlled lighting network, independent of the main grid,without sacrificing performance.

Solar street lights are very popular because they conserve energy and have many benefits for streets and roads. Designed by a professional industrial design team, integrating solar panels, led sources, controller, battery, human body induction, and housing.Designers have created these innovative solar lights to provide efficient lighting solutions for various outdoor spaces, including streets and roads.

With this LED Solar Street Light compact size, it is easy to ship with lower transportation costs, and When installing all-in-one solar street lights, there is no external wiring process, unlike the conventional solar street lights. the installation process can be done in only a few minutes. You can install it without any hassle since it doesn’t require engineering or electrical background skills in setting it up. All you need to do is fasten the mounting screws on the pole.

This all in one solar street lights are easy to install. Eliminating the installation of traditional split solar street lights, including installing battery panel brackets, installing lamp holders, and making battery pits, greatly saving labor and construction costs.

Photovoltaic Panel

The default 210 architecture monocrystalline silicon photovoltaic panel can reach 45W in the size range of 650x350mm. At present,similar products can usually only achieve 32w in this size range.In addition to the photovoltaic panels that come with the product,there are external expansion photovoltaic interfaces.

LED

This Solar Street Light adopts Cree XHP50 or Lumileds OEM custom chip x12 by default, in which case the maximum luminous output of the single lamp can reach 25,000 lumens (to meet the needs of road lighting equivalent to 6~21m height, and can also be used in some high-pole lighting applications);Note: The same series of chip CCT (color temperature)-4000K (standard) / 3000K (optional) is also supported.

Photics

The default LEDIL lens can meet almost any light distribution needs on the market, with both range and precision.Note: Custom and OEM products are also supported in the structure to support the entire light source module between -40° -+ 40° for free adjustment.

Solar Charge Controller

This Solar Street Light Innovative max power point tracking (MPPT) technology, tracking efficiency >99% Independently developed MPPT system,with remote control of PC and mobile
terminal compatibilit Automatic recognition of system voltage,12V and 24V Full digital technology, high charge & discharge conversion efficiency up to 96% Motion detection for adapting dimming levels based on pedestrian needs Precision constant current control supports from 50mA up to 3000mA External temperature sensor 5 Step dimming can be programmed from 0% to 100% levels IP67, Strong and durable aluminum case Remote control operation

Full automatic electronic protection Low voltage disconnect (LVD) and reconnect (LVR) settings in order to keep battery life healthy

Extended Function

1-With external expansion photovoltaic interface, you can hang
photovoltaic panel components.
2-With 12v power supply port, it can mount components such as
external cameras or mains modules, output 12 to 15v(depending
on the linear change of battery)/MAX3A, input 15v/MAX3A.

Sensor

Dual PIR sensors (L+R mounted)
Detection range <15m/<49
Detection area PIR Boost activates
for 30 seconds.

Battery

This Solar Street Light the default battery life is 120h(up to 9.5 nights),
the default battery capacity is 12.8v/36ah/460.8wh,
and the cathode material is LiFePo4 with passive b
attery balancing technology.
Modular battery compartment,
later maintenance more convenient.

This all in one solar street lights can store as much as solar power during the day to provide a safe and reliable back-up power supply to itself. Its integrated body offers easy installation, thus, it helps to save much time.
