Jupiter-L LED Solar Bollard Light
Product features
- PoleMaterial:Aluminum 6063
- Operating Temp:-25℃ ~ +45℃
- LED Chips:Philips /Seoul
- Runtime:STD-4 Step dimming
- Output:200LM/W
- Light Distribution:Asymmetric
- Design life:25 Years
- Warranty:10 Years
SHINETOO LED lighting manufacturer, with a professional R&D team and service team, supports OEM and ODM and other customised services.
Description
Jupiter-L LED Solar Bollard Light
Energy-saving and eco-friendly: Solar-powered lawn lights use sunlight as their sole energy source, eliminating the need for external power sources,thus boasting high energy efficiency and environmental friendliness.Cost-effective and hassle-free: Since they don’t require wiring, installation and maintenance costs are low, and there are no extra operating costs to be paid through electricity bills.Easy to install and move: Solar-powered lawn lights don’t need complicated installation steps; simply place them in an area with plenty of sunlight.Moreover, they can be easily moved to another location since they don’t require a fixed socket.

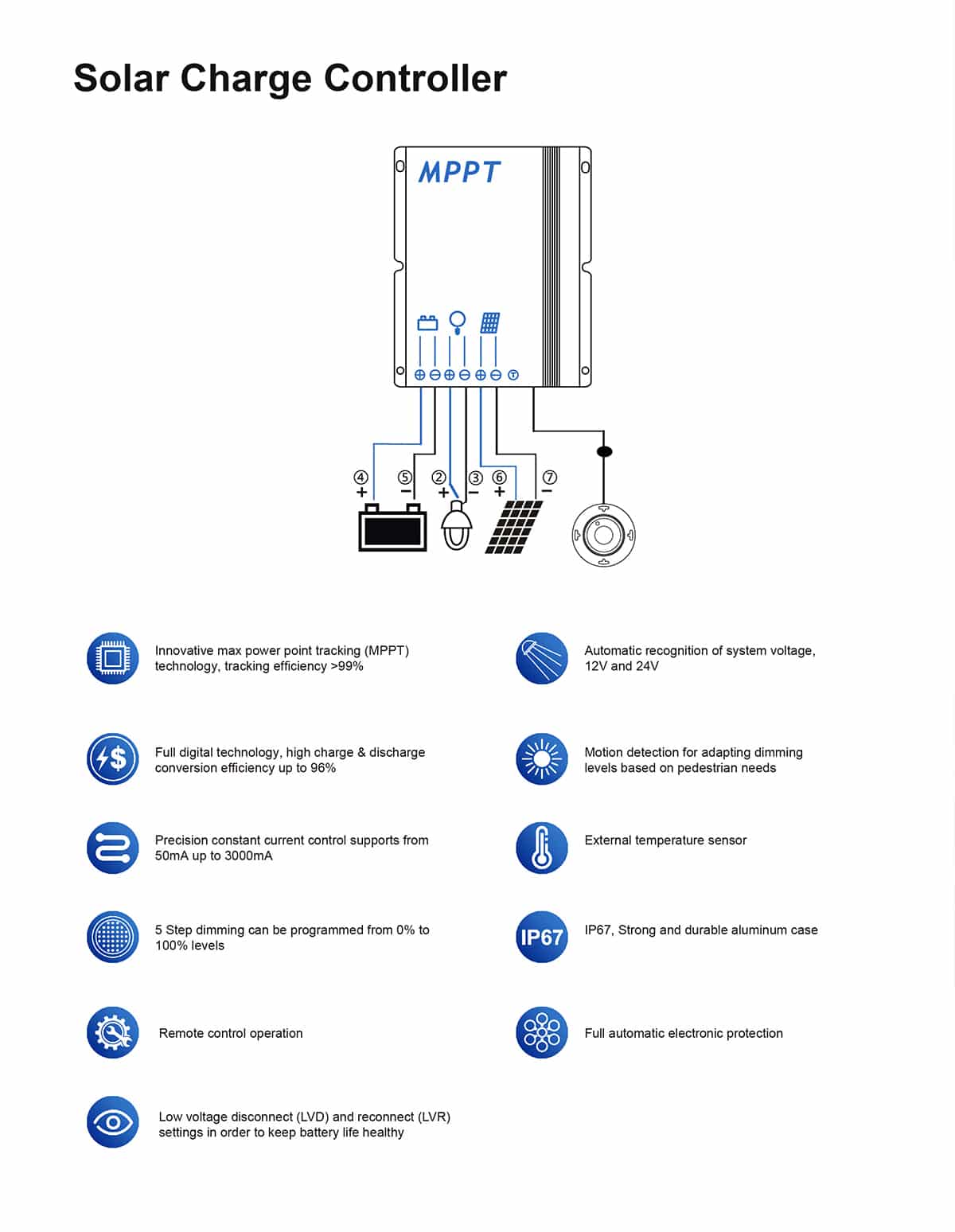

Solar Charge Controller
Innovative max power point tracking (MPPT) technology, tracking efficiency >99% Automatic recognition of system voltage,12V and 24V Full digital technology, high charge & discharge conversion efficiency up to 96% Motion detection for adapting dimming levels based on pedestrian needs Precision constant current control supports from 50mA up to 3000mA External temperature sensor 5 Step dimming can be programmed from 0% to 100% levels IP67, Strong and durable aluminum case Remote control operation
Full automatic electronic protection Low voltage disconnect (LVD) and reconnect (LVR) settings in order to keep battery life healthy
datasheet
MODEL NUMBER | ST-Jupiter-LS | ST-Jupiter-LM | ST-Jupiter-LL |
---|---|---|---|
Pole Material | Aluminum 6063 | Aluminum 6063 | Aluminum 6063 |
LED Chips | Philips / Seoul | Philips / Seoul | Philips / Seoul |
Operating temperature | -25℃ ~ +45℃ | -25℃ ~ +45℃ | -25℃ ~ +45℃ |
Output | 200LM/W | 200LM/W | 200LM/W |
Color | 3000K / 4000K / 5000K | 3000K / 4000K / 5000K | 3000K / 4000K / 5000K |
Pole Color | Bronze / Black / Wood Grain / customized finishes available | Bronze / Black / Wood Grain / customized finishes available | Bronze / Black / Wood Grain / customized finishes available |
IP&IK Protection | >IP65, IK10 | >IP65, IK10 | >IP65, IK10 |
Warranty | 10 Years | 10 Years | 10 Years |
Design life | 25 Years | 25 Years | 25 Years |
Power Consumption | Factory Set 1.5W (1-3W adjustable at site) | Factory Set 3W (1-5W adjustable at site) | Factory Set 5W (1-10W adjustable at site) |
all LED Solar Landscape Lighting Fixtures
certification show
As the top manufacturer of LED flood lights in China, our LED flood lamps have complete certification and test reporting, such as ENEC, CE, CB, IECEE, SAA, ROHS, UL, IEC62471, LM80, LM79, and so on
Frequently Asked Questions(FAQ)
A tennis court in a club used for championship or professional matches; Using 8 lights, 60,000 lumens. Because LED lamps are much more efficient than metal halide lamps, far fewer wattages are needed to achieve this brightness.
Tennis organization lighting requirements for professional players
For televised games, the minimum lighting level should average about 285 feet.”
It only takes a few seconds to go from light to light.
Relatively speaking, LED lighting completely outperforms metal halide lamps in terms of longevity, power saving, no UV radiation, IP65 and IP66, IK08 and IK10.
Many tennis courts are now in the process of replacing LED lights from metal halide, the sooner you replace them the sooner you benefit, not only do you get brighter lights and they last up to 50,000 hours and are very energy efficient and reduce maintenance costs, LED lights are a very good choice now and in the future.
Recreational tennis court (size is 36*18m), 6 x 6m high poles, using 6 x 300W LED lights. 2 recreational tennis courts, using 12 x 9m high LED poles, using 8 x 300W LED lights per tennis court, for a total of 16 x 300W LED lights.
The general installation height should be no less than 40 feet and no lower than the other lights in the facility.
According to our years of experience in the design of LED lighting, tennis courts with LED lights, generally using 300-500W wattage, can replace metal halide lamps wattage is 800W-1500W, can save a lot of electricity.
